Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2

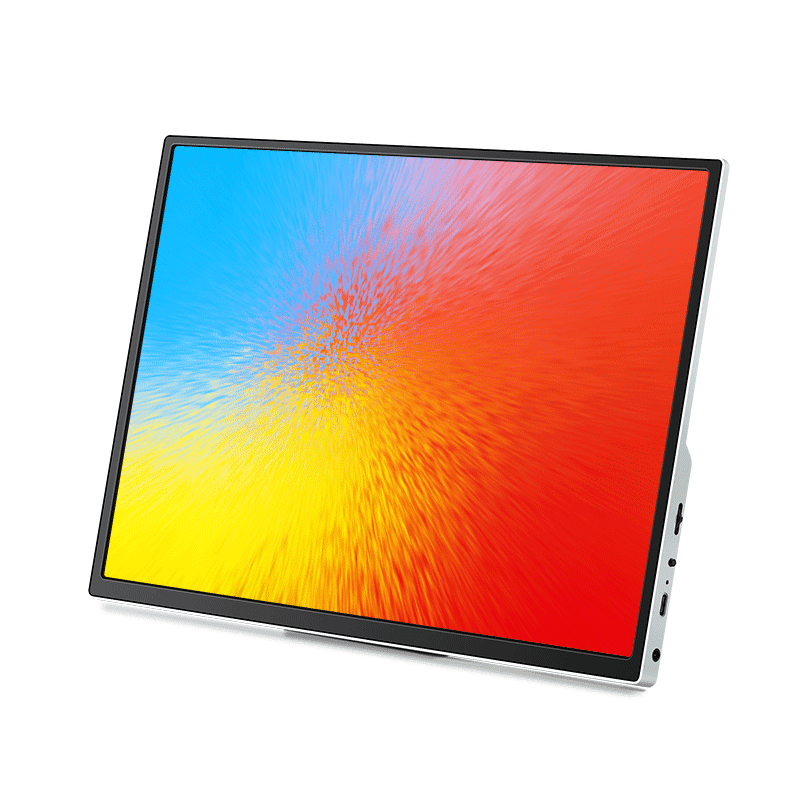

Model Number | ZP135UCC |
---|---|
Screen Size | 13.5 inch |
Resolution | 3K(3000*2000) |
Interface Type | Type-C*2 Mini HDMi |
Contacts:Adeline
Tel:+86 -17765298109
Fax:+86-18123876009
size | 13.5 |
Model Name | ZP135UCC |
Panel manufacturer | Panasonic |
Display size | 13.5″ LED backlight |
Product resolution | 3000×2000 |
Display area | 285.3(W)×190.2(H) mm |
Surface treatment | Matte |
Display mode | IPS, normally black display, transmissive |
brightness | 480 cd/m² (Typ.) |
Contrast | 1800:1 (Typ.) (transmission) |
Reaction time | 35~80 (Max.)(Tr Td) ms |
Touch function | NA |
Pixel pitch | 0.0951×0.0951 mm (H×V) [267PPI] |
screen ratio | 16:10 |
Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
Refresh rate | 60Hz |
Color gamut | 100% sRGB |
HDR image rendering | YES |
FREE-SYNC | YES |
Display color | 16.7M |
Mini HDMI | 2.0 input/audio and video transmission |
USB Type C | External power supply/audio and video transmission |
USB Type C | External power supply/audio and video transmission |
Headphone plug | 3.5mm headphone jack |
Key mode | Full-featured pulsator button |
Appearance material | CNC aluminum alloy oxidation process (metal shell) |
physical dimension | 300*207*11mm |
Packing box size | 365*260*65mm |
Bare metal weight | 610g |
Package weight | 1215g |
Outer packing box | 9PCS/box |
PS4 | Mini HDMI to HDMI |
X BOX ONE | Mini HDMI to HDMI |
SWITCH | Mini HDMI to HDMI Type-C one-line direct connection |
tablet | Some models Type-C direct connection |
PC host | Mini HDMI to HDMI |
notebook | Mini HDMI to Mini HDMI Type-C one-line direct connection |
TV box | Mini HDMI to HDMI |
Digital camera | Mini HDMI to HDMI |
Android phone | Samsung/Huawei/JMGO and other full-featured mobile phones One-line communication: mobile phone mode/PC mode |
