Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2
| Model Number | ZP161FCJ |
|---|---|
| Screen Size | 16.1 inch |
| Touch screen monitor | NA |
| Resolution | 1920×1080 |
| Interface Type | Type-C*2 Mini HDMi |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-18123876009
| size | 16.1 inch |

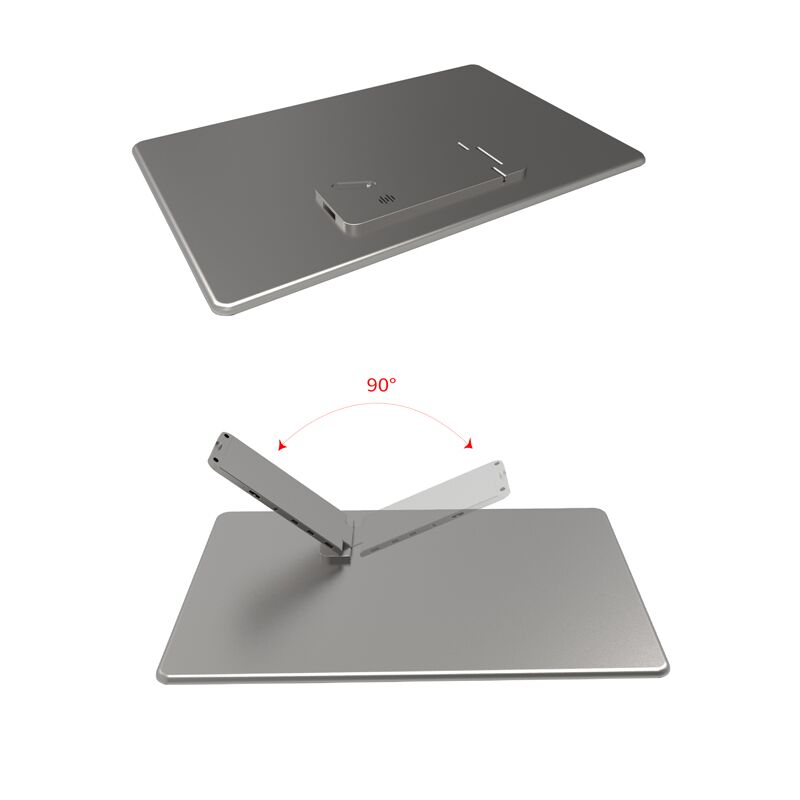

| Model Name | ZP161FCJ double blind bracket |
| Panel manufacturer | Innolux |
| Display size | 16.1″ LED backlight |
| Product resolution | 1920×1080 |
| Display area | 355.39 × 199.91 mm (H×V) |
| Surface treatment | Matte |
| Display mode | AAS, normally black display, transmissive |
| brightness | 300 (Typ.) |
| Contrast | 1000: 1 (Typ.) [Transmission] |
| Reaction time | 11/9 (Typ.)(Tr/Td) ms |
| Touch function | / |
| Pixel pitch | 0.1617×0.1617 mm (H×V) [137PPI] |
| screen ratio | 16:09 |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Refresh rate | 60Hz |
| Color gamut | 100% sRGB |
| HDR image rendering | YES |
| FREE-SYNC | YES |
| Display color | 16.7M |
| Mini HDMI | 2.0 input/audio and video transmission |
| USB Type C | External power supply/audio and video transmission |
| USB Type C | External power supply/audio and video transmission |
| Headphone plug | 3.5mm headphone jack |
| Key mode | Full-featured pulsator button |
| Appearance material | CNC aluminum alloy oxidation process (metal shell) |
| physical dimension | 367*229*5mm |
| Packing box size | 400*275*60mm |
| Bare metal weight | 856g |
| Package weight | 2069g |
| Outer packing box | 7PCS/box |

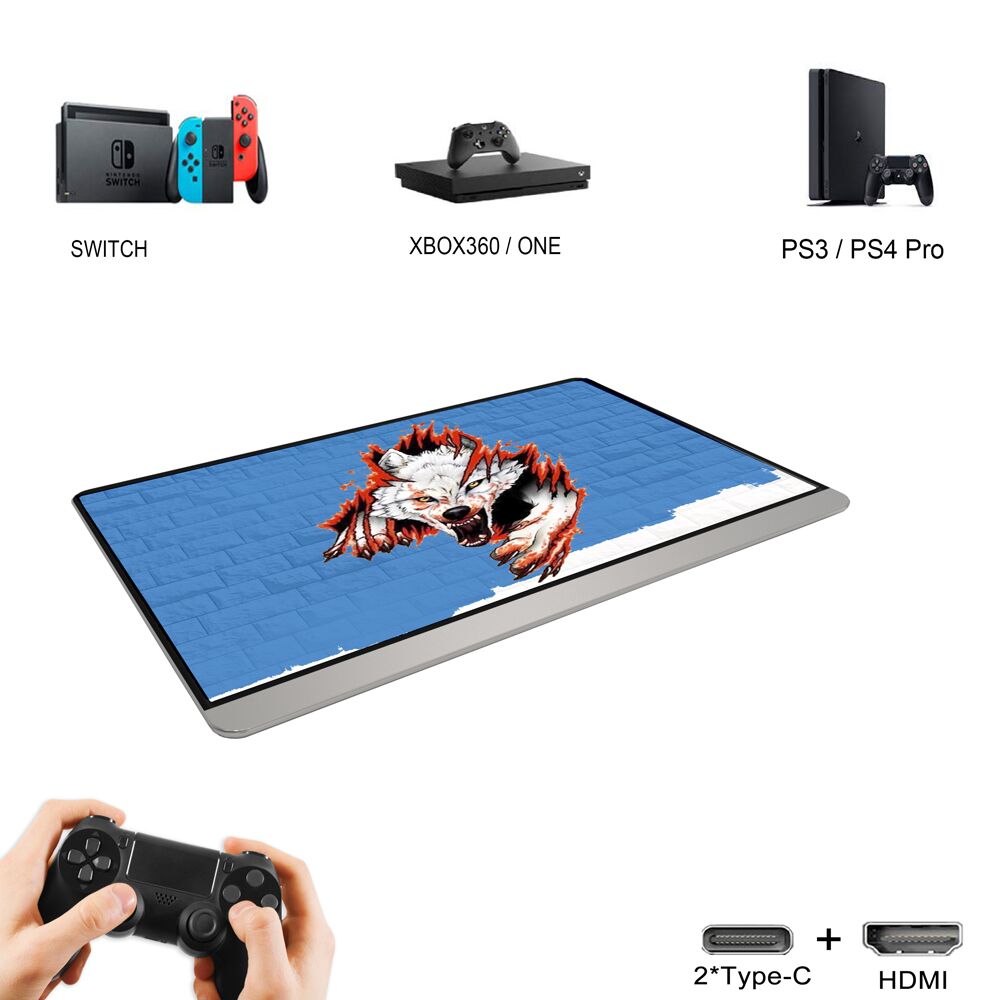

| PS4 | Mini HDMI to HDMI |
| X BOX ONE | Mini HDMI to HDMI |
| SWITCH | Mini HDMI to HDMI Type-C one-line direct connection |
| tablet | Some models Type-C direct connection |
| PC host | Mini HDMI to HDMI |
| notebook | Mini HDMI to Mini HDMI Type-C one-line direct connection |
| TV box | Mini HDMI to HDMI |
| Digital camera | Mini HDMI to HDMI |
| Android phone | Samsung/Huawei/JMGO and other full-featured phones One-line communication: mobile phone mode/PC mode |
| iPhone | Need to support iPhone direct connection |
