Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2

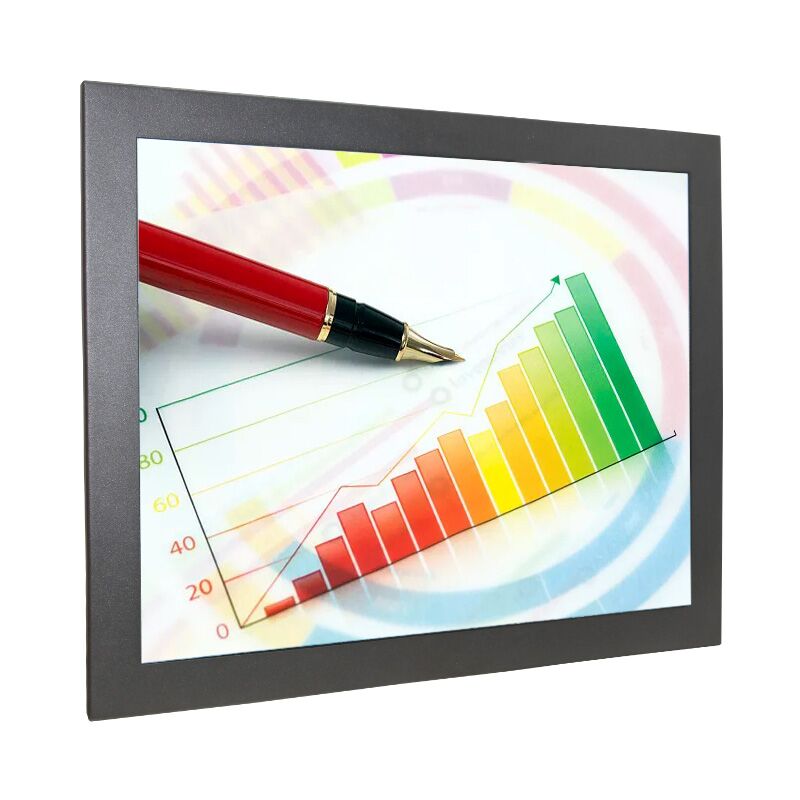

| Model Number | ZE170C |
|---|---|
| Touch screen monitor | Capacitive Screen |
| Resolution | 1280*1024 |
| colour | black |
| Interface Type | VGA USB HDMI optional |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-18123876009
| LCD Type | 17” TFT-LCD | ||||
| Video Input | VGA and DVI , HDMI – optional | ||||
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | ||||
| Power Supply | Type: External brick | ||||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | |||||
| Output voltage/current: 12 volts at 4 amps max | |||||
| Mount Interface | 1)VESA 75mm and 100mm | ||||
| 2)Mount bracket, horizontal or vertical | |||||
| LCD Specification | |||||
| Active Area(mm) | 339.8(H)×272.5(V) | ||||
| Resolution | 1280×1024@75Hz | ||||
| Dot Pitch(mm) | 0.264×0.264 | ||||
| Nominal Input Voltage VDD | +5.0V(Typ) | ||||
| Viewing angle (v/h) | 85°/88° | ||||
| Contrast | 1000:1 | ||||
| Luminance(cd/m2) | 350, 1000cd/m2 – optional | ||||
| Response Time(Rising) | 5ms/5ms | ||||
| Support Color | 16.7M | ||||
| Backlight MTBF(hr) | 30000 | ||||
| Touchscreen Specification | |||||
| Type | Projected Capacitive touch screen | ||||
| Resolution | 10points touch | ||||
| Touch Life Cycle | 10 millions | ||||
| Touch Response time | 2ms | ||||
| Touch System Interface | USB interface | ||||
| Power consumption | +5V@80mA | ||||
