Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2
| Model Number | ZT185R |
|---|---|
| Touch screen monitor | Resistance |
| Resolution | 1440×900 |
| colour | black |
| Interface Type | VGA USB HDMI optional |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-18123876009
| Panel size | 18.5 inch TFT-LCD Touch Screen Monitor | Operation Environment | Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C |
| Display ratio | 16:10 | Operate relative humidity:20% to 80%;storage relative humidity:10% to 90% | |
| Standard Resolution | 1440*900 | Touch model | 4-wire resistive touch |
| Number of Colors | 16.7M | Optional | (5-wire resistive touch,SAW,Infrared touch,etc optional) |
| Brightness | 450cd/m2 | Duration | 50000hours |
| Response time | 5ms | touch validity | >1,000,000 |
| View angle | Horizontal:170° | Mount (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
| Vertical: 160° | 2) provide stable metal base to support the monitor | ||
| Contrase ratio | 1000:1 | OSD control | AUTO,+,POWER,-,MENU |
| Video input format | (analog) RGB | brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |

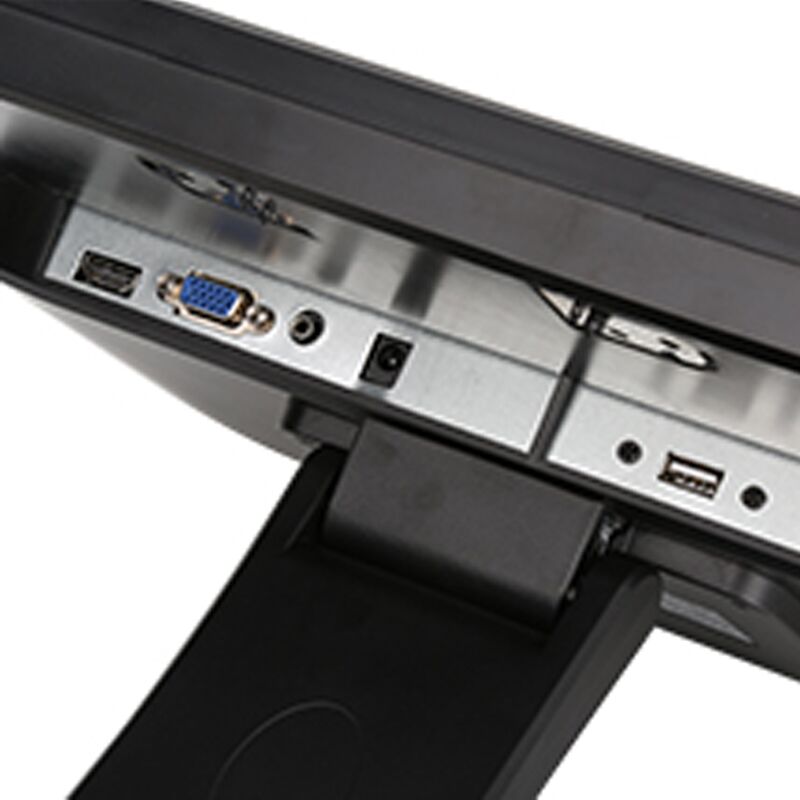

| Interface | VGA for video signal （HD-MI option） | Touch interface | USB or RS232 optional |
| USB (or RS232) for touch (other interface optional) | Touch response time | 2ms | |
| Frequency | 30~80KHz/60~75Hz | Warranty | 3 year,provide spare parts |
| Power supply | External Power Supply:100 to 240V (DC 12V) | Supporting O.S | Windows,Linux,Mac. |
