Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2

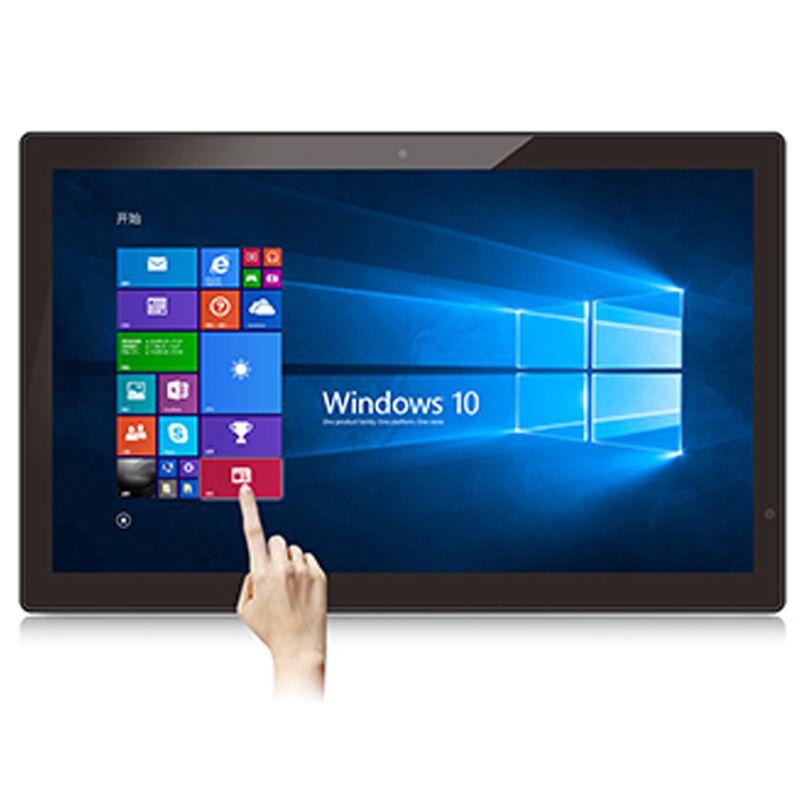

| Model Number | ZT19CA |
|---|---|
| Touch screen monitor | Capacitive Screen |
| Resolution | 1366×768 |
| colour | black |
| Interface Type | VGA USB HDMI optional |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-18123876009
| Display | Screen | 18.5 inch IPS screen | ||||||||||||
| Touch mode | capacitance G+G touch display | |||||||||||||
| Resolution | 1366×768 | |||||||||||||
| Brightness | 300 cdm2 | |||||||||||||
| Contrast | 1000:1 | |||||||||||||
| Display area | 410×231 mm | |||||||||||||
| Screen scale | 16：9 | |||||||||||||
| Configuration | Master chip | Mstar V59 | ||||||||||||
| Memory | Optional | |||||||||||||
| Interface | SD card slot | One ( max support 32GB ) | ||||||||||||
| HDMI | One ( HDMI input ) | |||||||||||||
| AV | One ( AV input ) | |||||||||||||
| Earphone | One ( 3.5 mm ) | |||||||||||||
| USB 2.0 | One | |||||||||||||
| USB 2.0 | One (Touch screen connect) | |||||||||||||
| Power | One (4.0×1.7 mm ) DC power input | |||||||||||||
| Multi-Media | Audio | MP3 | ||||||||||||
| Video | RM/RMVB/AVI/MPG/MPEG/FLV/VOB/MP4/MKV etc. ( Max 1920×1080-30MBps ) | |||||||||||||
| Picture | JPEG | |||||||||||||
| Other functions | Remote control | Full function remote control | ||||||||||||
| Time | Calendar, clock | |||||||||||||
| Power on / off | Timing on and off | |||||||||||||
| Key | Body 1 buttons | |||||||||||||
| Auto play | Boot automatically cycle: video, pictures, music, pictures + Music (can be set in settings) | |||||||||||||
| Picture playback adjustment | Adjust picture play interval, picture switch transition effect | |||||||||||||
| Other parameters | Power consumption | 15W | ||||||||||||
| OSD language | Multi OSD language | |||||||||||||
| Speaker | Built-in 2×2W speaker | |||||||||||||
| Color selection | White / Black | |||||||||||||
| Attachment | Adapter | One, specifications: 12V/3A | ||||||||||||
| Desktop Bracket | One | |||||||||||||
| Remote control | One | |||||||||||||
| User’s Manual | One | |||||||||||||
| HDMI cable | Optional | |||||||||||||
| Theftproof cover plate | One ( Prevents the inserted SD card or U disk from being stolen ) | |||||||||||||
Shenzhen Zhiwei Technology Co., Ltd.
zhiwei@zwlcd.com
+86 17765298109
+86 17765298109
83 Rongchang Road, Longhua Street, Longhua District, Shenzhen
We will contact you within 1 working day, please pay attention to the email with the suffix “@zwlcd.com”.
