Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2
| Model Number | ZEX173 |
|---|---|
| Resolution | 1600 X 900 |
| colour | black |
| Interface Type | VGA USB HDMI optional |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-18123876009

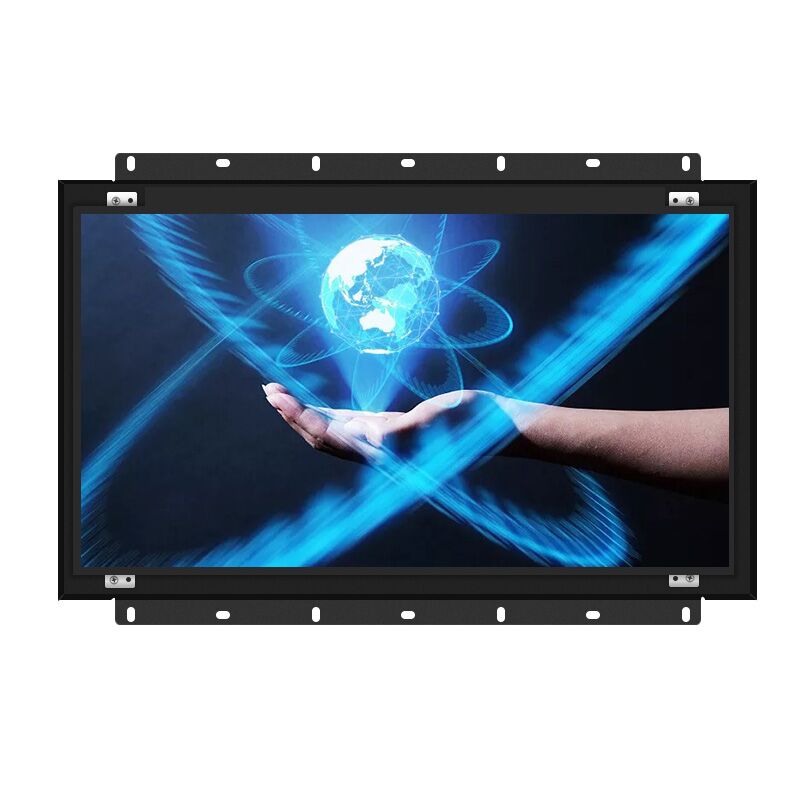

| Panel size | 17.3 inch LED Monitor |
| Display area | 382.1×214.9(mm2) |
| Standard Resolution | 1600×900 |
| Number of Colors | 16.2M |
| Brightness | 350cd/m2 |
| Dot pitch: | 0.279mm |
| Response time | 5ms |
| View angle | H:1760°V:176° |
| Contrase ratio | 1000:01:00 |
| Connector | VGA for video signal |
| Optional Interface | AV,TV,HDMI,USB,DVI (TV fuction) |
| Frequency | 30~80KHz/60~75Hz |
| Power supply | External Power Supply: (DC 12V) |
| Operation Environment | Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C |
| Operate relative humidity:20% to 80%;storage relative humidity:10% to 90% | |
| Net weight | 6.0 Kgs/pcs,include stable mental base |
| Gross weight | 6.5 Kgs/pcs,include stable mental base |
| Power consumption | Max 11W |
| Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
| 2) provide stable mental base to support the monitor | |
| OSD control | AUTO,+,POWER,-,MENU |
| brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset |
