Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2

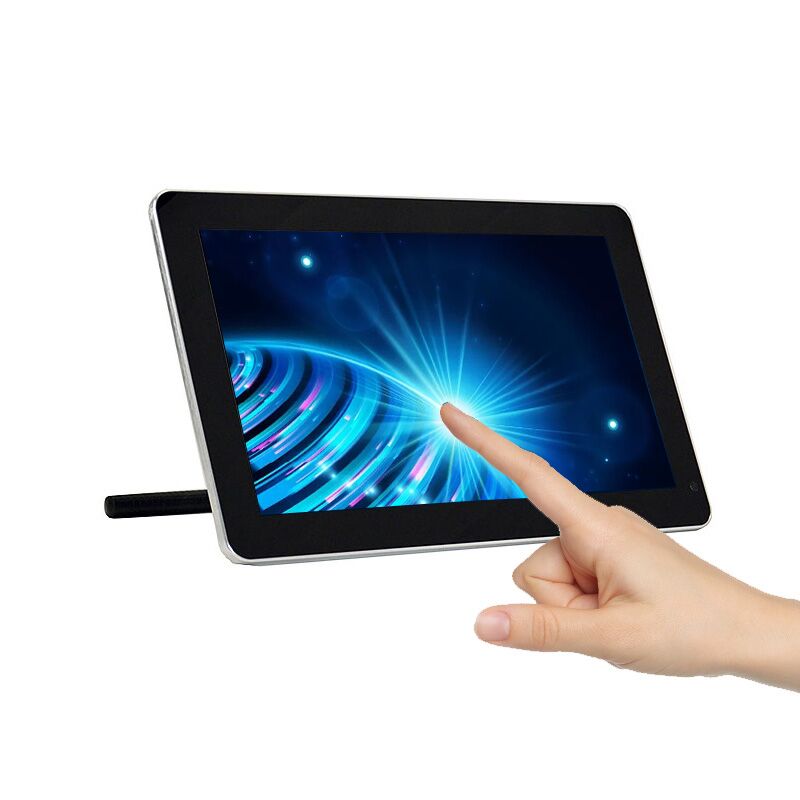

| Model Number | ZT101MC |
|---|---|
| Touch screen monitor | Capacitive Screen |
| Resolution | 1280*800 |
| colour | black |
| Interface Type | D-SUB, DVI, VGA BNC HDMI |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-18123876009
| LCD specification | Touchscreen Specification | ||
| LCD Type | 10.1” TFT-LCD | Type | Capacitive touch screen |
| Video Input | VGA and DVI , HDMI – optional | Resolution | 10points touch |
| Active Area(mm) | 246.0(H)×184.5(V) | Touch Life Cycle | 50 millions |
| Resolution | 1280*800 | Touch Response time | 2ms |
| Dot Pitch(mm) | 0.3075×0.3075 | Touch System Interface | USB interface |
| Viewing angle (v/h) | 60°/70°(CR>5) | Power | Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Contrast | 1000:1 | Output voltage/current: 12 volts at 4 amps max | |
| Luminance(cd/m2) | 350, 1000cd/m2 – optional | Mount Interface | 1)VESA 75mm and 100mm |
| Response Time(Rising/Falling) | 5ms/5ms | 2)2)Mount bracket, horizontal or vertical | |
| Support Color | 16.2M colors | Backlight MTBF(hr) | 50000 |
