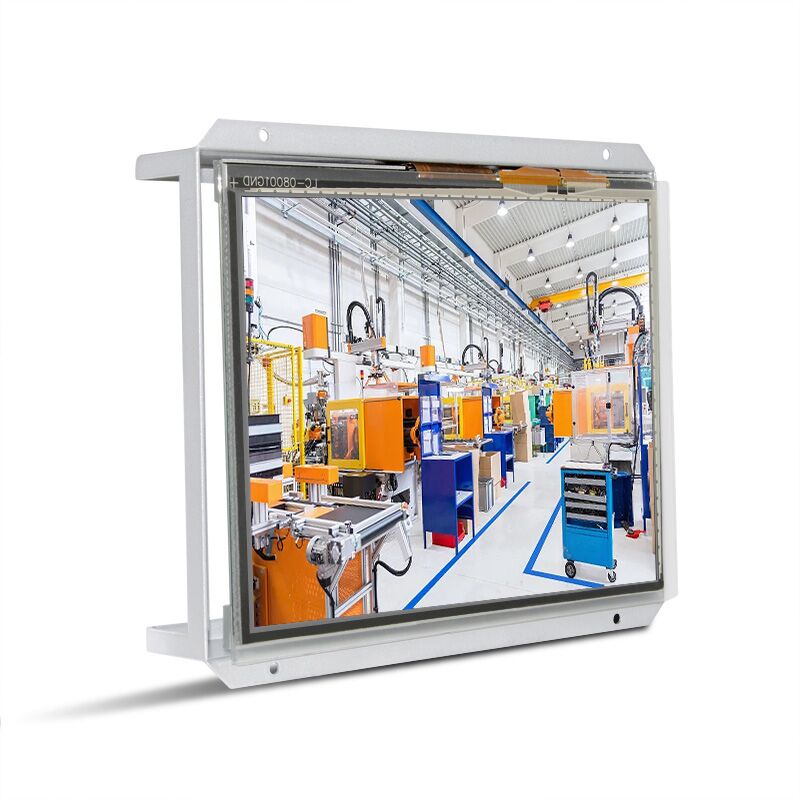

factory supply open frame ATM Gaming 9 inch lcd touch screen monitor

Product Details:

Place of Origin:

Brand Name:

Certification:

Delivery Time:

Minimum Order Quantity:

Shenzhen, China

OEM or ZWBA

CE ROHS

2-8 working days

2

Additional information

Model Number

ZE801C

Touch screen monitor

Capacitive Screen

Resolution

1280*800

colour

black, silver

Interface Type

VGA USB HDMI optional

Product Details

Panel size 8 inch TFT-LCD Touch Screen Monitor (16:10)
Standard Resolution 1280*800
Number of Colors 16.2M
Brightness 350cd/m2
Response time 5ms
View angle Horizontal:170°
Vertical:160°
Contrase ratio 500:01:00

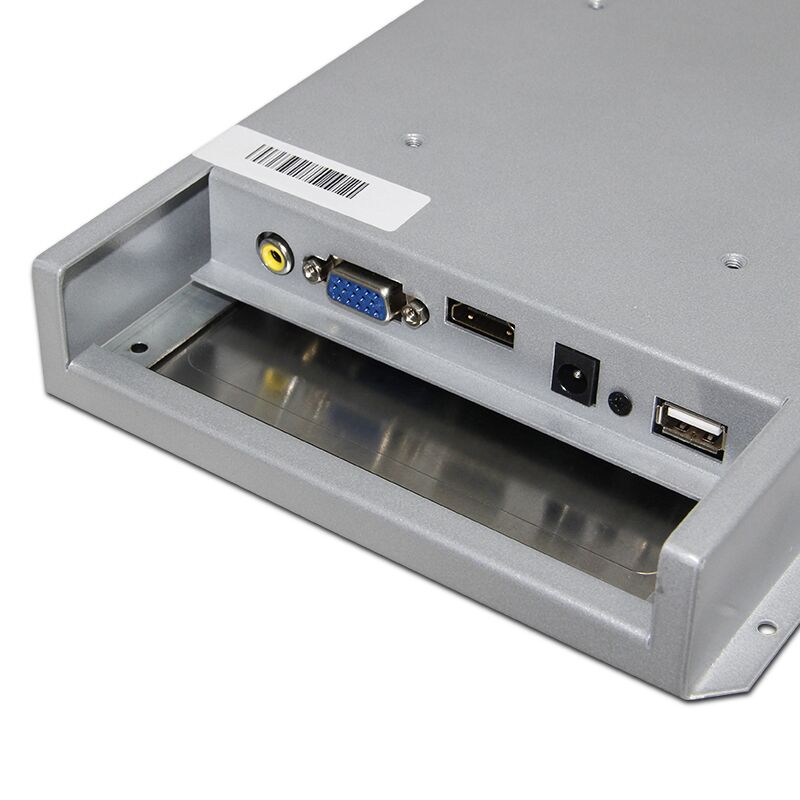

Connector HDMI for video signal
USB for touch
Frequency 30~80KHz/60~75Hz
Power supply External Power Supply:100 to 240V  (DC 12V)
Operation Environment Workable Temperature:-10 to 60°C   Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90%
Touch model Capacitive touch
 Optional (5-wire resistive touch,SAW,Infrared touch optional)
Duration 50000hours
touch validity >1,000,000
Net weight 6.0 Kgs/pcs,include stable mental base
Gross weight 6.5 Kgs/pcs,include stable mental base
Power consumption Max 30W

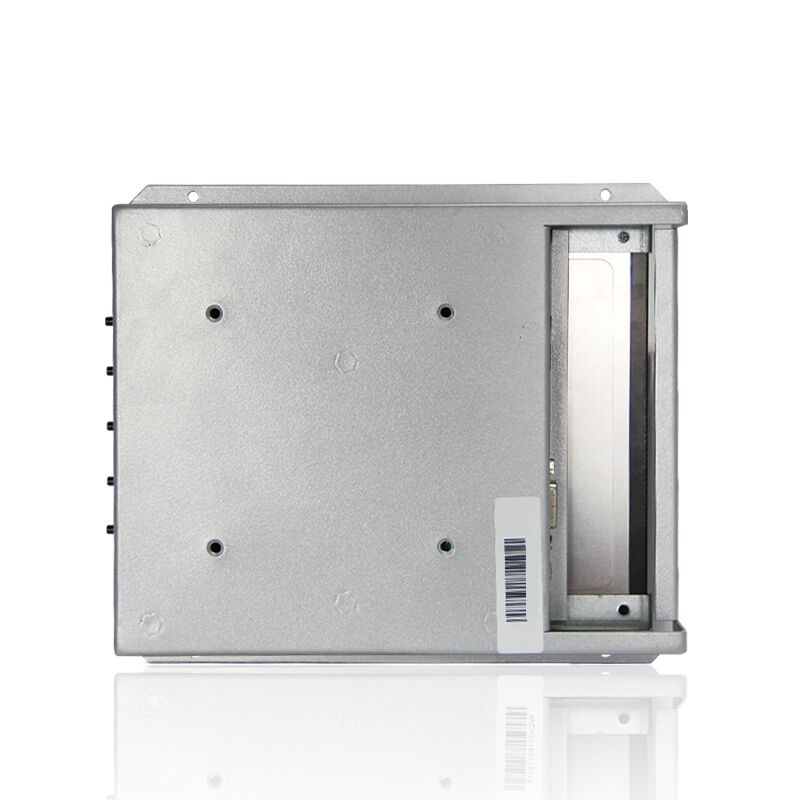

Setup (optional) 1) provide wall brackets for wall-mounting, VESA 75mm&100mm
2) provide stable mental base to support the monitor

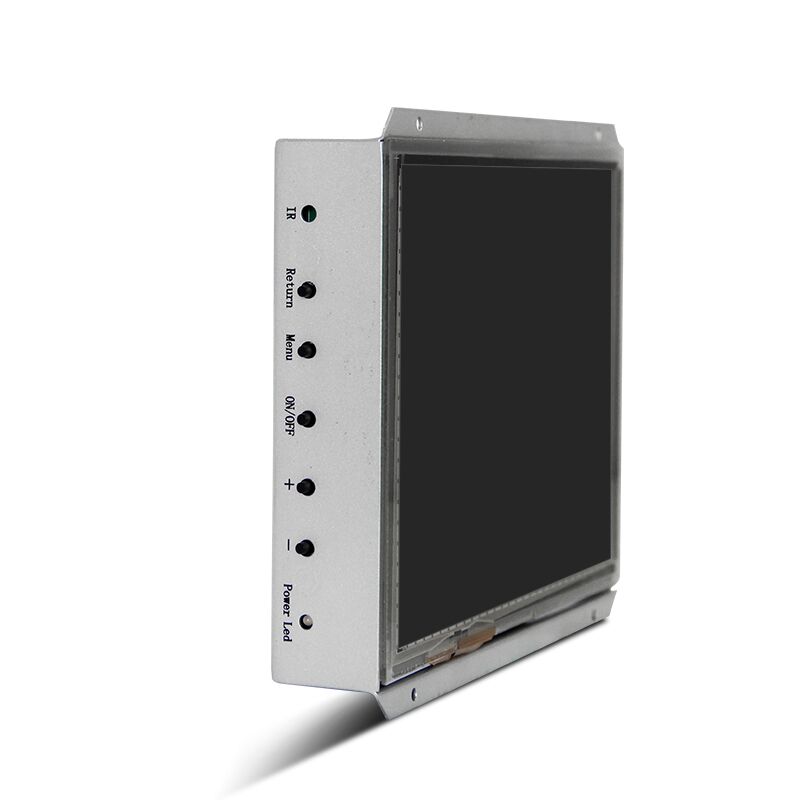

OSD  control AUTO,+,POWER,-,MENU
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset
Touch interface USB or RS232 optional
Touch response time 2ms
Warranty 3 year,provide spare parts
Monitor size(not include base) 375*285*55mm
Each unit box size 420*370*155mm
Package size 4pcs in a carton,carton size:650*450*430mm
Operation system Windows,Linux,Mac.

factory supply open frame ATM Gaming 9 inch lcd touch screen monitor
