Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2
| Model Number | ZT1503R |
|---|---|
| Touch screen monitor | Resistance |
| Resolution | 1024*768 |
| colour | black |

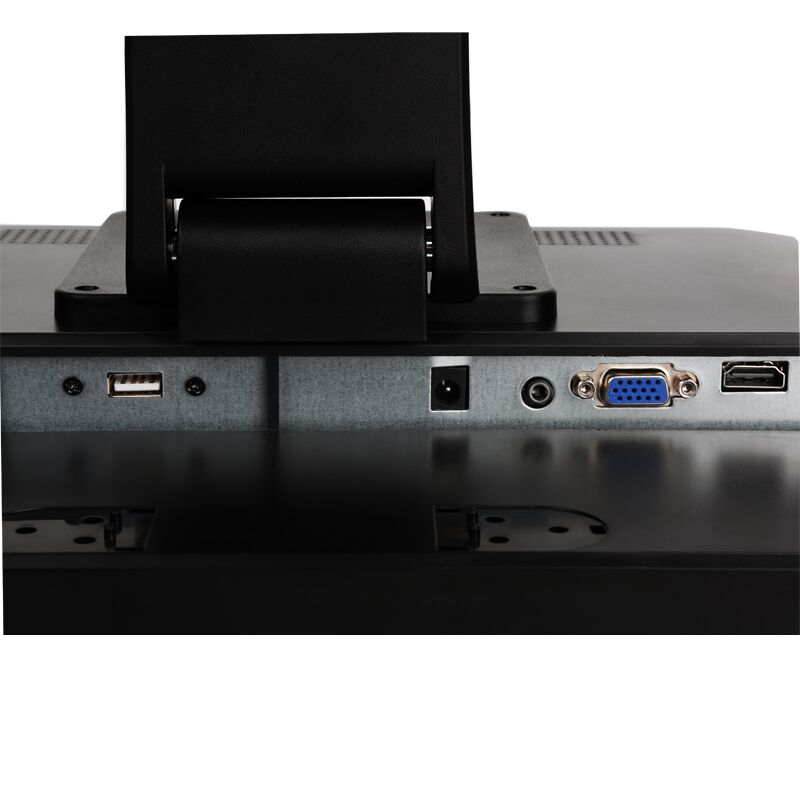

| Interface Type | VGA USB HDMI optional |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-18123876009
| Panel size | 15 inch TFT-LCD Touch Screen Monitor | Touch model | 4-wire resistive touch |
| Display area | 304*228mm | Optional | (5-wire resistive touch,SAW,Infrared touch optional) |
| Standard Resolution | 1024*768 | Duration | 50000hours |
| Number of Colors | 16.2M | touch validity | >1,000,000 |
| Brightness | 300cd/m2 | Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
| Response time | 5ms | 2) provide stable mental base to support the monitor | |
| View angle | Horizontal:160° | OSD control | AUTO,+,POWER,-,MENU |
| Vertical:170° | brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | ||
| Contrase ratio | 1000:1 | Touch interface | USB or RS232 optional |
| Connector | VGA for video signal（HD-MI option） | Touch response time | 2ms |
| USB (or RS232) for touch | Operation system | Windows,Linux,Mac. |
