Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2
| Model Number | ZT1503C, ZT1703C |
|---|---|
| Touch screen monitor | Capacitive Screen |
| Resolution | 1024*768 |
| colour | black, White |
| Interface Type | VGA USB HDMI optional |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-18123876009

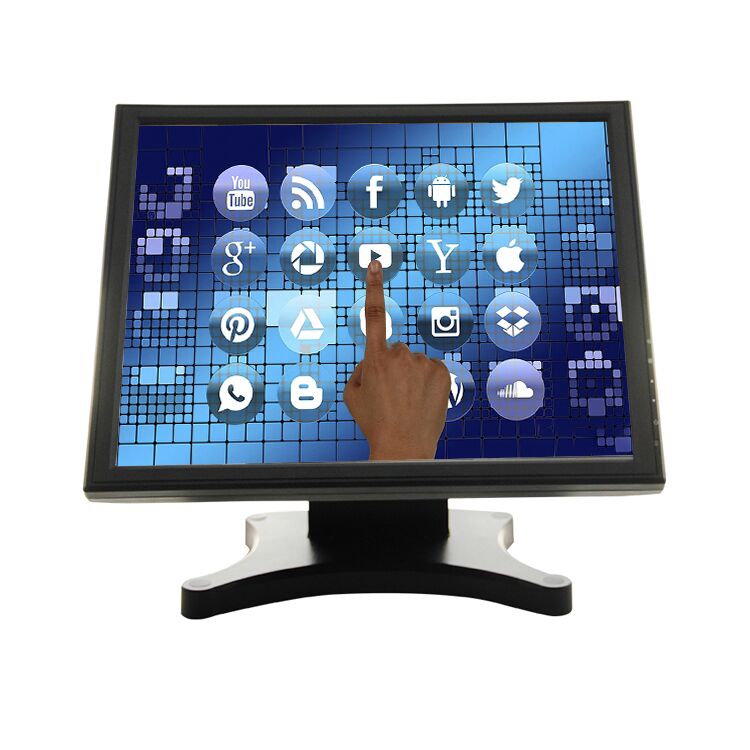

| Panel size | 15 inch TFT-LCD Touch Screen Monitor | Duration | 50000hours |
| Display area | 304*228mm | touch validity | >1,000,000 |
| Standard Resolution | 1024*768 | Net weight | 6.0 Kgs/pcs,include stable mental base |
| Number of Colors | 16.2M | Gross weight | 6.5 Kgs/pcs,include stable mental base |
| Brightness | 300cd/m2 | Power consumption | Max 30W |
| Response time | 5ms | Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
| View angle | Horizontal:160° | 2) provide stable mental base to support the monitor | |
| Vertical:140° | OSD control | AUTO,+,POWER,-,MENU | |
| Contrase ratio | 20.83402778 | brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |
| Video input format | (analog) RGB | Touch interface | USB or RS232 optional |
| Connector | VGA for video signal | Touch response time | 2ms |
| USB (or RS232) for touch | Certificate | CE, ROHS | |
| Frequency | 30~80KHz/60~75Hz | Warranty | 3 year,provide spare parts |
| Power supply | External Power Supply:100 to 240V (DC 12V) | Monitor size(not include base) | 375*285*55mm |
| Operation Environment | Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C | Each unit box size | 420*370*155mm |
| Operate relative humidity:20% to 80%;storage relative humidity:10% to 90% | Operation system | Windows,Linux,Mac. | |
| Touch model | Projected Capacitive touch screen | Optional | （resistive touch,SAW,Infrared touch,etc optional) |
