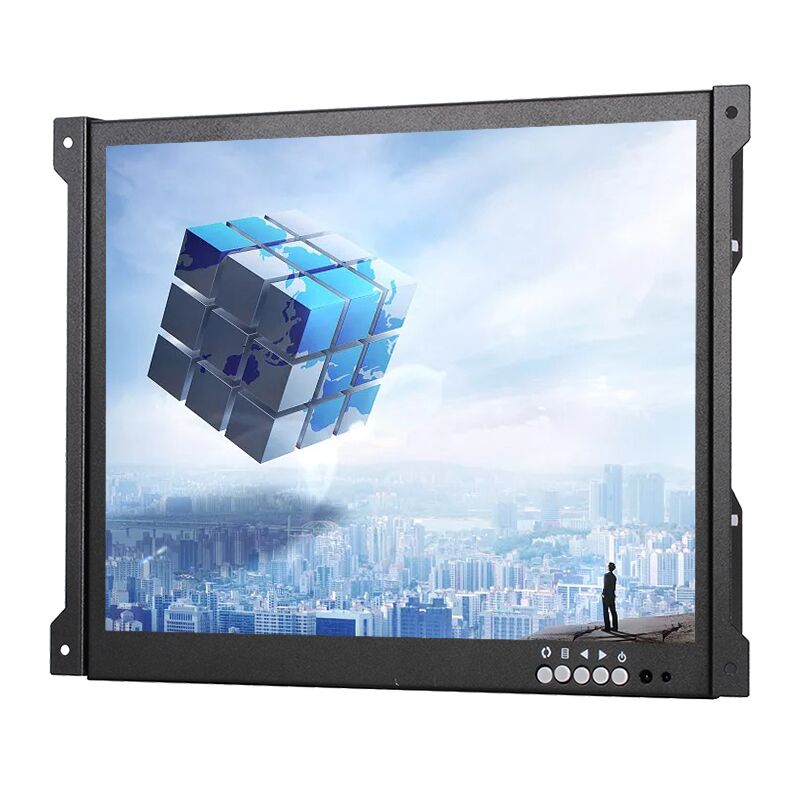

12 inch 1024*768 industry lcd monitor open frame 1500nits lcd monitor

Product Details:

Place of Origin:

Brand Name:

Certification:

Delivery Time:

Minimum Order Quantity:

Shenzhen, China

OEM or ZWBA

CE ROHS

2-8 working days

2

Additional information

Model Number

ZC12E

Screen Size

12 inch

Resolution

1024*768, 800 x 600

colour

black

Interface Type

D-SUB, DVI, VGA BNC HDMI

Product Details

Panel Size 12.1”(High brightness,high resolution)
Display area 247mm(W)×186mm(H)
Aspect ratio 4:3
Dot Pitch 0.264mm×0.264mm(H,V)
Resolution 1024×768(800*600 industrial grade panel)
Contrast ratio 500:1
Brightness 450cd/m2
Response time 5ms
Viewing angle 178°/178°
Color 16.7M
Life span 50,000(小时)
Exclusive function Industrial metal shell,Wearable and Shockproof, anti-jamming, suitable for different environment, Great Radiating
Can make as digital TV, industrial equipment display, Closed-circuit monitor display,  computer display
4D color management and image processing technology
Mulit inputs available
High Brightness,Full screen display uniformity
3D Digital Noise Reduction,Digital instant brightness enhancement
Instant digital chroma enhancement,Automatic color correction
DNX(Digital Natural Expression),Motion compensation image processing technology;
Long life、low Radiation、Environmental protection;
Interface VGA 15 Pin VGA input
BNC 1*BNC input
HDMI HDMI interface(1080p/1080i/720p)
AV 1*video signal input,2*audio input
Audio input PC audio input
Audio output PC audio output(Digital)
Power input DC 12V
OSD Multi language English,French,Spanish,Polish,Portuguese,Italian,German,Dutch,Russian(Option )
Working temperature 0°C – 50°C
Working Humidity 10-90%
Installation Desktop ,Wall mount,can hang on the ceiling
Packing size 10units/carton,external carton size:36*70*61cm

12 inch 1024*768 industry lcd monitor open frame 1500nits lcd monitor
