Place of Origin:
Brand Name:
Certification:
Delivery Time:
Minimum Order Quantity:
Shenzhen, China
OEM or ZWBA
CE ROHS
2-8 working days
2
| Model Number | ZC1501 |
|---|---|
| Screen Size | 15 inch |
| Resolution | 1024*768 |
| colour | black |

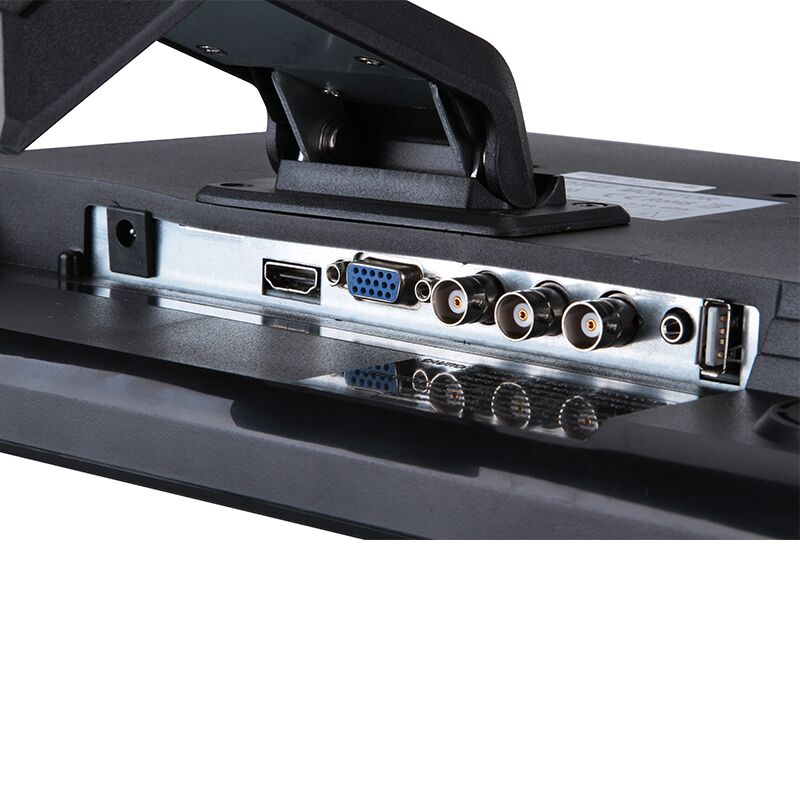

| Interface Type | 2AV, D-SUB, DVI, VGA BNC HDMI |
Contacts：Adeline
Tel:+86 -17765298109
Fax:+86-18123876009

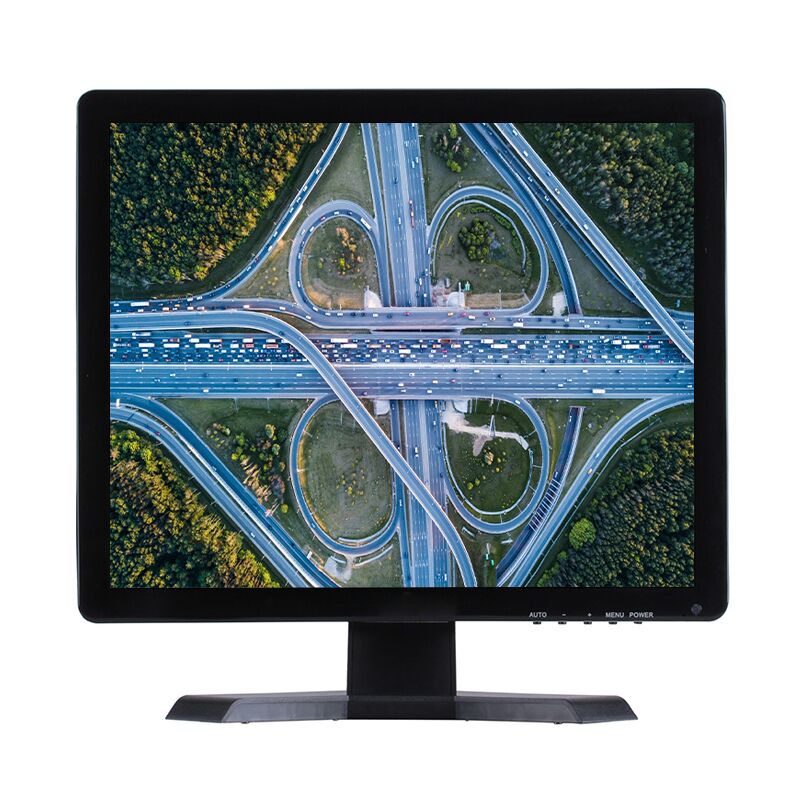

| Panel | 15 inch 4:3 LCD MONITOR |
| Model: 1501 | |
| Viewing Area: 304*228mmmm | |
| Viewing angle: H:176° V:170° | |
| Resolution: 1024*768 | |
| dot pitch: 0.297mm | |
| Response time: 5ms | |
| Contrast: 1000:1 | |
| colors: 16.7M | |
| Maximum brightness: 350cd/m2 | |
| Backlight：CCFL or LED | |
| Power | Voltage: DC 12V |
| Power consumption <8.5W | |
| Stand-by: 0.5W | |
| Function | Input type: VGA/HDMI/BNC/AV/USB |
| Accessories | Power cable |
| VGA cable | |
| User manual | |
| Install | 1) Desktop |
| 2) Wall Mount With VESA75*75 or 100*100 | |
| OSD MENU | Button AUTO, + ,POWER, – ,MENU |
| Language: Chinese , English , German , French , Italy |
Shenzhen Zhiwei Technology Co., Ltd.
zhiwei@zwlcd.com
+86 17765298109
+86 17765298109
83 Rongchang Road, Longhua Street, Longhua District, Shenzhen
We will contact you within 1 working day, please pay attention to the email with the suffix “@zwlcd.com”.
